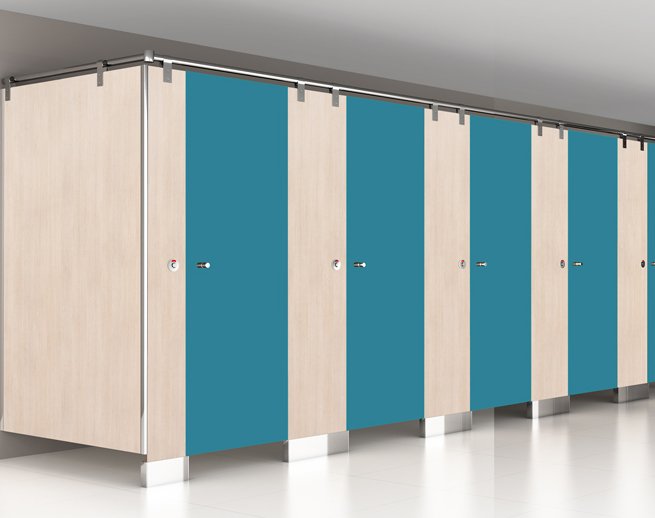

Another fabulous offering from Team Interior Solutions, the Nexus Canvas collection is developed from 12mm thick high pressure compact Laminate to give unmatched durability and lasting value besides great aesthetics. Additionally, there is a stainless steel top rail for extra strength, stability and durability. This shoe box model is an upgrade of the standard adjustable foot with a cleaner stainless steel box located at the bottom to provide a clean line design. Rest of the hardware like hinges, locks, door knobs and coat hooks are also undoubtedly stainless steel. A perfect selection for your restroom space!.

Nexus Canvas

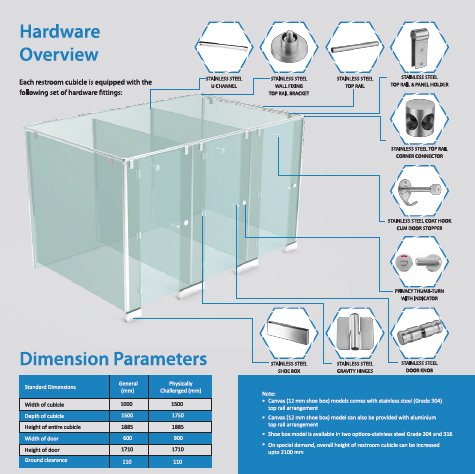

HARDWARE ASSEMBLY DETAILS

All panels are supported by L-bracket with floor anchor bolt. The L-bracket is concealed with stainless steel flat shoe box upto 100 mm height. The stainless steel shoe box is available in SS Grade 304 and 316 options. The divider panels are fixed onto the wall with stainless steel (Grade 304) U-channel section and SS Grade 304 screw inserts. Further all panels are fixed with a stainless steel (Grade 304) top rail at the top and doors are incorporated with the noise absorbing tape to reduce the noise effect..

Nexus Canvas Hardware

Note :

  • Canvas (12 mm shoe box) models comes with stainless steel (Grade 304) top rail arrangement

  • Canvas (12 mm shoe box) model can also be provided with aluminium top rail arrangement.

  • Shoe box model is available in two options-stainless steel Grade 304 and 316.

  • On special demand, overall height of restroom cubicle can be increased upto 2100 mm.

Nexus canvas Hardware
